所属类别：4路

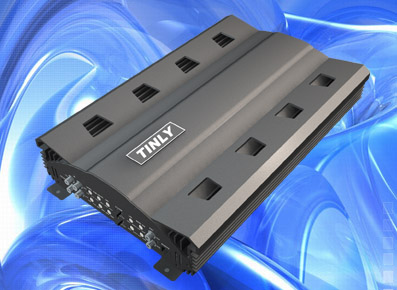

产品货号：TL60630
产品名称：
产品简介：MOSFET PWM power supply.
Power soft start
Mute circuit for power on / off built-in side
Overload, Thermal, short circuit protection.
Super-bass filter
60 Hz Low frequency compensation circuit
Hi/Low pass filter (12dB)
External control for low-frequency gain

Out put power (THD: 1%)load 4 Ohm:100W×4　　
　　　　　　　　load 2 Ohm:180W×4　　
　　　　　　　　SUB 4 Ohm　　:324W×2　　
Input sensitivity:155　　mv
Signal to noise ratio　　:95dB
Frequency response (lower 3 dB):10-60 KHz　　Hz
Super-bass filter (lower 3 dB):15-40 Hz
Low pass filter (lower 3 dB):40~250 Hz
High pass filter (lower 3 dB):40~1KHz Hz
High compensation:dB
Super-Low compensation:6&12 Db
THD:0.05%
Damping Factor:>120 DF
Temperature protection:80±5℃
Input voltage range (DC):10-15V
Soft start time (second):3-5S
short circuit protection:0.2 Ohm
