所属类别：4路

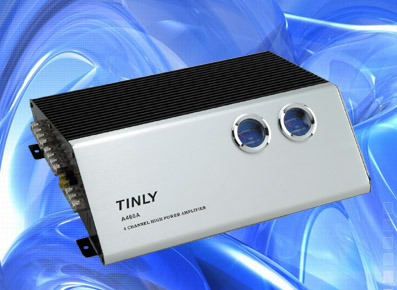

产品货号：A480A
产品名称：
产品简介：MOSFET PWM power supply.
Power soft start
Mute circuit for power on / off built-in side
Overload, Thermal, short circuit protection.
Super-bass filter
60 Hz Low frequency compensation circuit
Hi/Low pass filter (12dB)
External control for low-frequency gain

Loadl4Ω:80W×4　　
Output powerLoad2Ω:148W×4　　
(DC13.8V;THD1%)BRIDGE4Ω:200W×2　　
Signal to noise ratio　　:90dB　　
Frequency response(Full):10-60KHz　　
THD:0.01%　　
Damping Factor:>120DF　　
Size(L×W×H)mm:382×275×91
