所属类别:2路

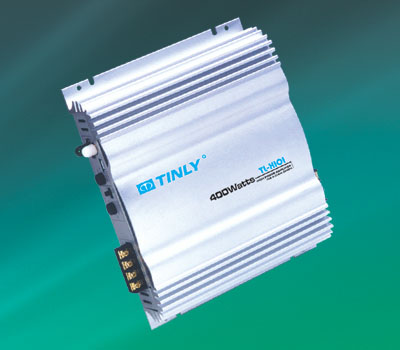

产品货号:TL-X101
产品名称:
产品简介:● Class A Technology Mosfet PWM Power Supply
● Stable into 2 ohms
● Bridgeable operation
● Soft start
● Short circuit protection
● Thermal protection
● Gold-plated Audio Input Terminal
● Sensitivity Adjustable
● Power indicator
Specifications:
1、RMS power output:
@ 4 ohms: 50W x 2
@ 2 ohms: 80W x 2
@ bridged: 150W
2、Signal to noise ratio: 90dB
3、Frequency response: 10Hz-40kHz
4、Total harmonic distortion: 0.05%
5、Damping factor: >120
6、Dimensions(LXWXH): 230 x 253 x 53mm
